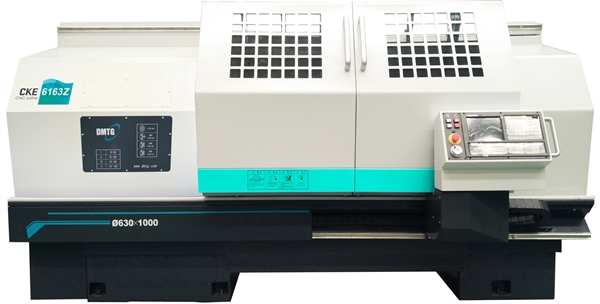

CNC Lathe
Type:Horizontal
Structure:Flat Bed Lathe
Condition:New
Year:NEW PRODUCTION
Max. Swing Diameter (mm):630 mm
Max. Length of Workpiece (mm):1000 mm
Max. Spindle Speed (r.p.m):1000 r.p.m
Machining Capacity:Light Duty
Spindle Bore(mm):100 m'm
Width of bed (mm):550 mm
Spindle Motor Power(kW):11
No. of Spindles:Single
Max. Turned Length (mm):630
Number of Axes:2
Travel (X Axis)(mm):320 mm
Travel (Z Axis)(mm):800 mm
Positioning Accuracy (mm):X0.018/Z0.024
Repeatability (X/Y/Z) (mm):X0.006/Z0.011
Place of Origin:China
Dimension(L*W*H):3455X2020X1805
Brand Name:DMTG
Model Number:CKE6163
Voltage:440/380/220
Certification:CE
CNC Control System:FANUC
Toolpost Brand:DMTG
Tool Post Stations:4
Weight (KG):4800
Warranty:1 YEAR
Warranty of core components:1 YEAR
All main components,bed, headstock, saddle, plinth,etc,are high quality solid castings.
Low friction turcite-B coating on mating surfaces between saddle and guideways.
Precision ballscrews and highly rigid precision bearing ensure accurate positioning and heavy cutting capability.
Centralized oil system provides forced automatic lubrication onto ballscres and all mating surfaces.
Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db. The CKE-i series, with independent spindle structure, utilizes a frequency converted splindle motor or servomotor to offer stepless high spindle speeds.
Operator adjustable control panel enables convenient tool setting.
Fully enclosed guards with interlock offer a waterproof and chip-free environment,
Horizontal 4-P automatic indexing toolpost is provided as standard, while vertical 4-P toolpost, horizontal 8-P toolpost, quick-change toolpost, etc can also be supplied to suit customers' specific requiremets
Optional pneumatic or hydraulic chuck and tailstock are available.
FUNUC, SIEMENS, FAGOR, etc control systems can be supplied.
E-handwheel function is also available.
