CNC Lathe

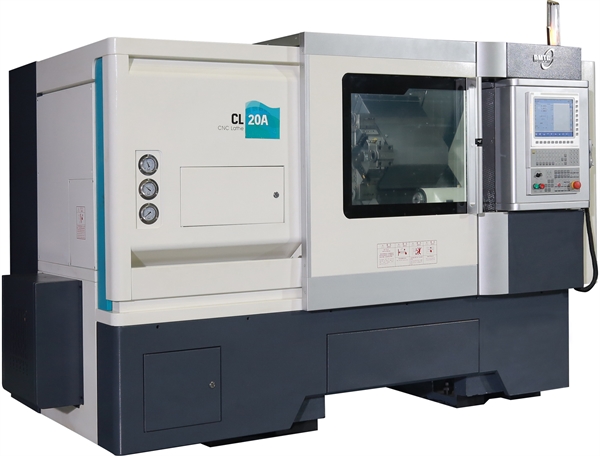

CNC LATHE SLANT BED CL20A
Quick Details
Type:Horizontal Structure Slant Bed Lathe
Max. Swing Diameter (mm):440 mm
Max. Length of Workpiece (mm):450 mm
Max. Spindle Speed (r.p.m):4500 r.p.m
Machining Capacity:Medium Duty
Spindle Bore(mm):87 m'm
Width of bed (mm):45 mm
Spindle Motor Power(kW):11(15)
No. of Spindles:Single
Max. Turned Length (mm):450
Number of Axes:2
Travel (X Axis)(mm):165 mm
Travel (Z Axis)(mm):500 mm
Positioning Accuracy (mm):(X)0.015 (Z)0.015
Repeatability (X/Y/Z) (mm):(X)0.004 (Z)0.004
Place of Origin:Liaoning, China
Dimension(L*W*H):4150X1620X1760
Brand Name:DMTG
Model Number:CL20A
Voltage:220/380/440
Certification:CE
CNC Control System:FANUC
Weight (KG):4500
Type:Horizontal Structure Slant Bed Lathe
Condition:New
Year:NWE PRODUCTIONMax. Swing Diameter (mm):440 mm
Max. Length of Workpiece (mm):450 mm
Max. Spindle Speed (r.p.m):4500 r.p.m
Machining Capacity:Medium Duty
Spindle Bore(mm):87 m'm
Width of bed (mm):45 mm
Spindle Motor Power(kW):11(15)
No. of Spindles:Single
Max. Turned Length (mm):450
Number of Axes:2
Travel (X Axis)(mm):165 mm
Travel (Z Axis)(mm):500 mm
Positioning Accuracy (mm):(X)0.015 (Z)0.015
Repeatability (X/Y/Z) (mm):(X)0.004 (Z)0.004
Place of Origin:Liaoning, China
Dimension(L*W*H):4150X1620X1760
Brand Name:DMTG
Model Number:CL20A
Voltage:220/380/440
Certification:CE
CNC Control System:FANUC
Brand:DMTG
Tool Post Stations:12Weight (KG):4500
Warranty:1 YEAR
The new CL and DL series of CNC slant bed lathes have rigid cast-iron structure hardened (50-52HRc) and ground to ensure high precision and stability. Machine beds are made of heat stabilized cast-iron. A wide range of machine configurations are available with spindles from ASA 5" to ASA 15", power up to 30 KW and turning length up to 3000mm. A wide range of options and accessories are available to customize the lathe for specific applications.
